Zones

Who is in your zones right now?

This is an overview of all your non-parking zones with a count of how many people are in those zones right now. The count of people currently present auto refreshes every couple of seconds so you always have the latest data available.

Per day counts

Opening up the per day counts page shows you the exact number of zone travels in that zone for a certain day. Click on the day to return to the graph with that day as the x-axis.

The platform calculated a day based on the date, and takes into account the event "allow check in/out of zones after midnight" value. This ensures people who checked into a zone after midnight are still calculated into the previous day.

Bulk download

• If you would like to download a complete list of all the zone travels in one big CSV, there is a button that allows that. The file will be generated in the background and sent to your email address.

• If you would like to download an occupancy overview of how many people were in the zones per 15 minutes of your event, a button exists for that too.

Open up a zone

Clicking a zone opens up the detail page with a list of all people who are checked into this zone at this moment and a graph.

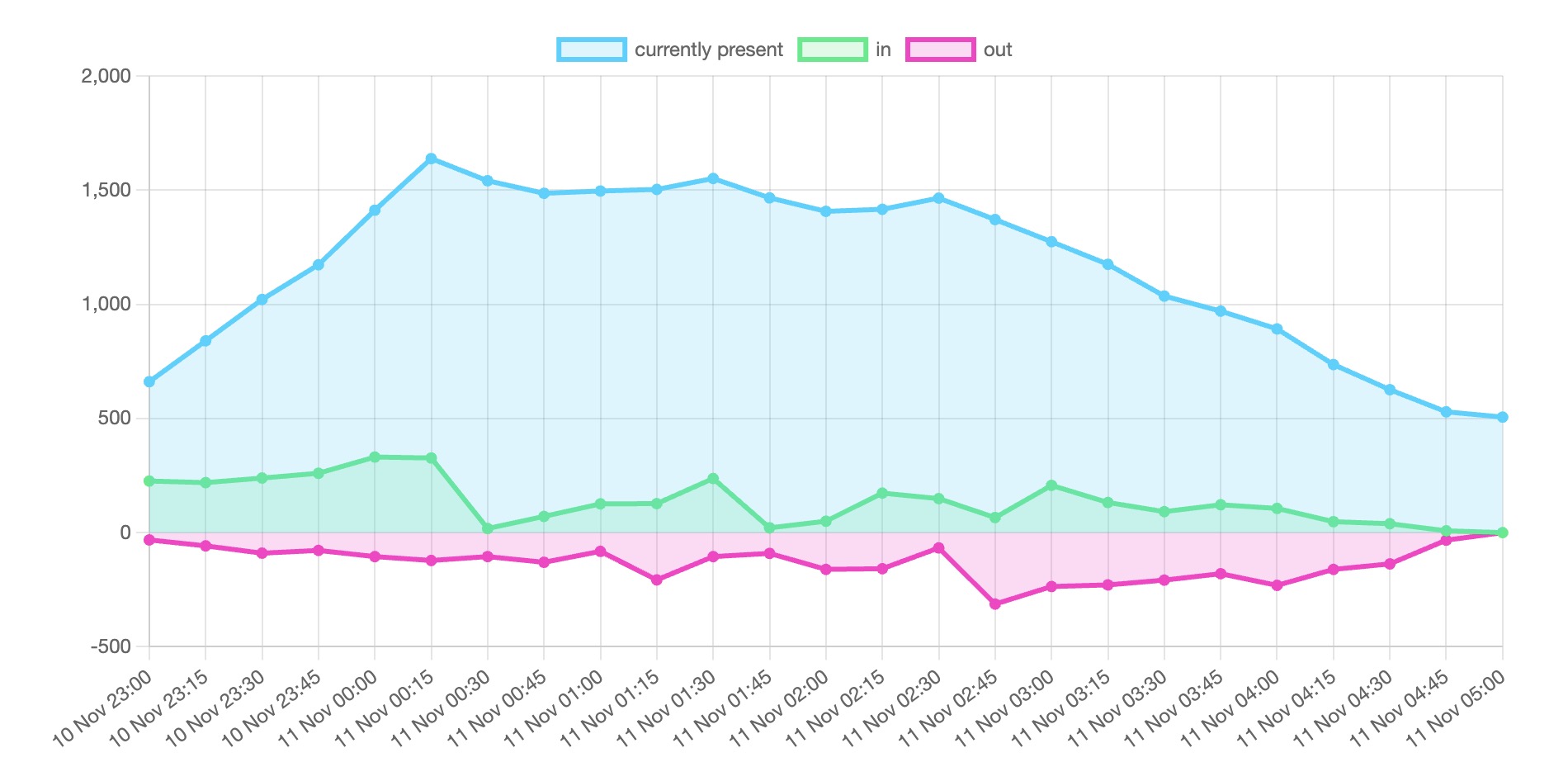

An overview of how many people entered, left and are present in this zone

This graph shows you how many people entered, left and were present in this zone in intervals. You can select the duration of the graph period, or change to another time.

You can also turn off certain lines on the graph by clicking the data color in the legend. This will result in a more detailed overview of other data lines.

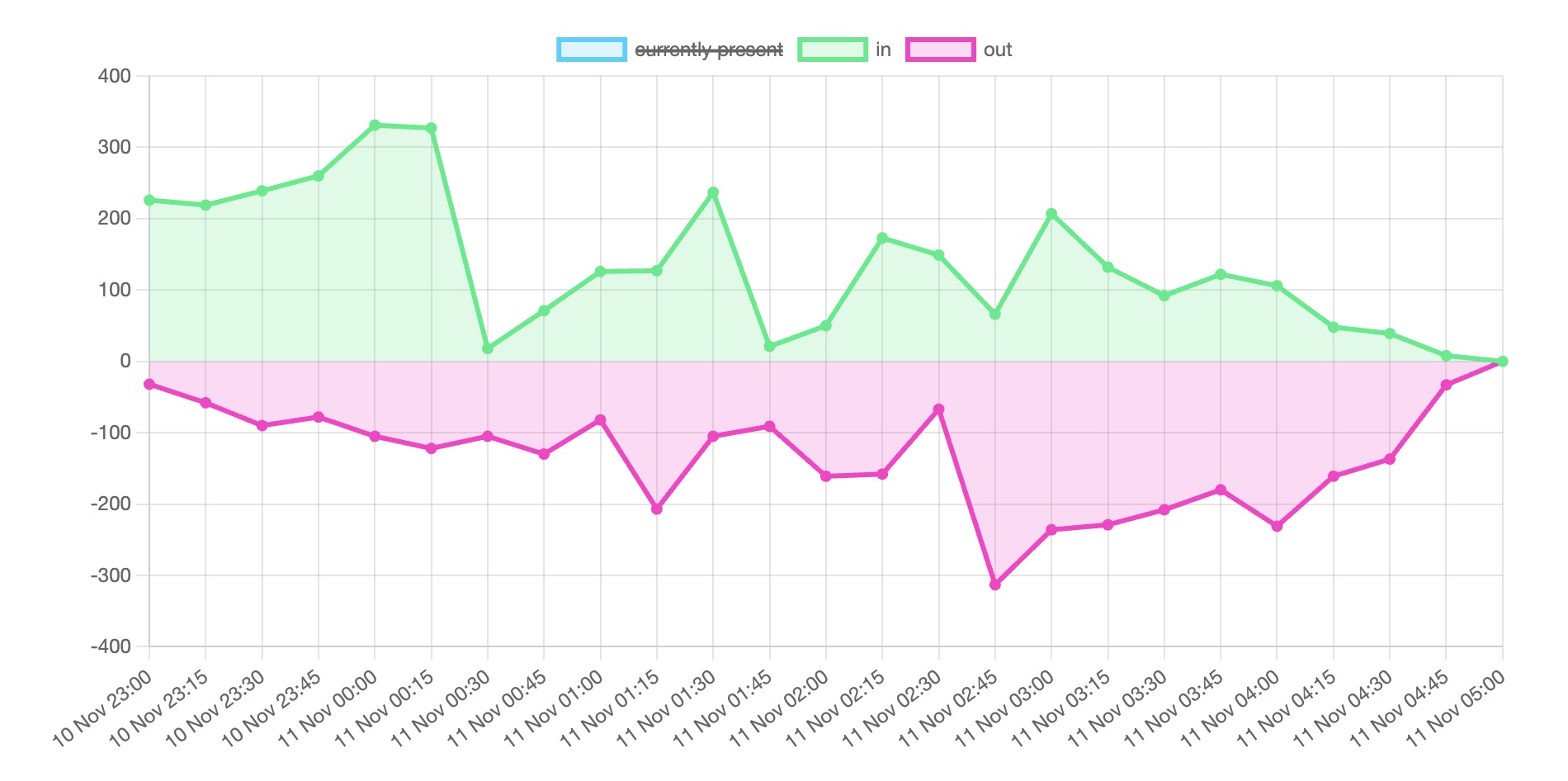

We turned off "currently present". This way the other lines pop out with more detail.

The graph duration options are

• 1 hour, very detailed with a marker every 2 minutes

• 6 hours with a marker every 15 minutes

• 12 hours with a marker every 20 minutes

• 1 day with a marker every 30 minutes
